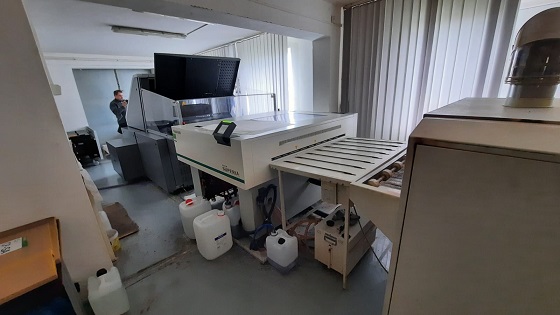

CTP KODAK MAGNUS -Trendsetter - Platesetter

Cena bez DPH :  65000 EUR L.O.T.

Rok výroby : 2022

Technology 830 nm platesetter with KODAK SQUARESPOT Imaging Technology, external drum

In-line punch option1 • Up to 10 customized punch heads. Select from a list of punches qualified for TRENDSETTER Q400/Q800 Platesetters

• Optional automatic punching is operated according to press profile selected from the KODAK Workflow

• Punch is available on the front edge of the plate only

• Automatic punch system adjustment for centering of plate.

Throughput at

2400 dpi2,3

plates per hour (pph)

Standard and Auto Unload:

F speed = 30 pph X speed = 43 pph

Autoloader/SCU/MCU:

F speed = 33 pph X speed = 50 pph

W speed = 75 pph

For plate size 838 x 724 mm (around x along drum)

Standard and Auto Unload:

F speed = 22 pph X speed = 34 pph

Autoloader/SCU/MCU:

F speed = 24 pph X speed = 41 pph

W speed = 66 pph

For plate size 838 x 1030 mm (around x along drum)

Repeatability ± 5 microns between two consecutive exposures on the same plate left on the drum

Accuracy ± 20 microns between two plates imaged on the same device

Registration ± 25 microns between image and plate edge

Workflow

connectivity

Standard KODAK Print Console with TIFF Downloader Software included; connects to KODAK PRINERGY Workflow and most

third-party workflow systems. JDF/JMF Connectivity Option enables functionality in the Print Console software to provide job

and device status. The optional KODAK Mobile CTP Control App lets you monitor CTP devices from your mobile device.

Resolution

Standard: 2400/1200 dpi

Optional: 2540/1270 dpi

High-Resolution Options: 4800 or 5080 dpi

Screening 450 lpi max line screen; Optional: 25-, 20- or 10-micron KODAK STACCATO Screening

Maximum plate size:

around x along drum4 838 x 990 mm5 Standard: 838 x 1,143 mm5

Auto Unload/Autoloader/SCU/MCU: 838 x 1,118 mm

Minimum plate size:

around x along drum4

Standard: 267 x 215 mm

Auto Unload/Autoloader/SCU/MCU: 330 x 270 mm6

Standard: 267 x 215 mm

Auto Unload/Autoloader/SCU/MCU: 330 x 270 mm6

Maximum image area:

around x along drum 827.9 x 990 mm Standard: 827.9 x 1,143 mm

Auto Unload/Autoloader/SCU/MCU: 827.9 x 1,118 mm

Size (H x W x D) /

Weight

Standard: 160 x 200 x 120 cm / 650 kg

Auto Unload: 170 x 200 x 128 cm / 762 kg

Autoloader: 184 x 200 x 128 cm / 796 kg

SCU: 186 x 233 x 231 cm / 1,158 kg

MCU: 191 x 233 x 254 cm / 1837 kg

In-Line Punch System Option: 102 x 151 x 120 cm /177 kg

For long unload table with plate rotation option: height becomes

210 cm, and 53 cm is added to the depth. Add 10 kg to weight.
